The 8-wire Resistive touch screen is the preferred solution for applications where accuracy is crucial and recalibration is unacceptable. Similar in construction to 4-wire resistive technology, each edge provides one more sensing line as a stable voltage gradient for the touch screen controller. The additional 4 lines enable the controller to automatically correct for drift resulting from harsh environments and extended use.

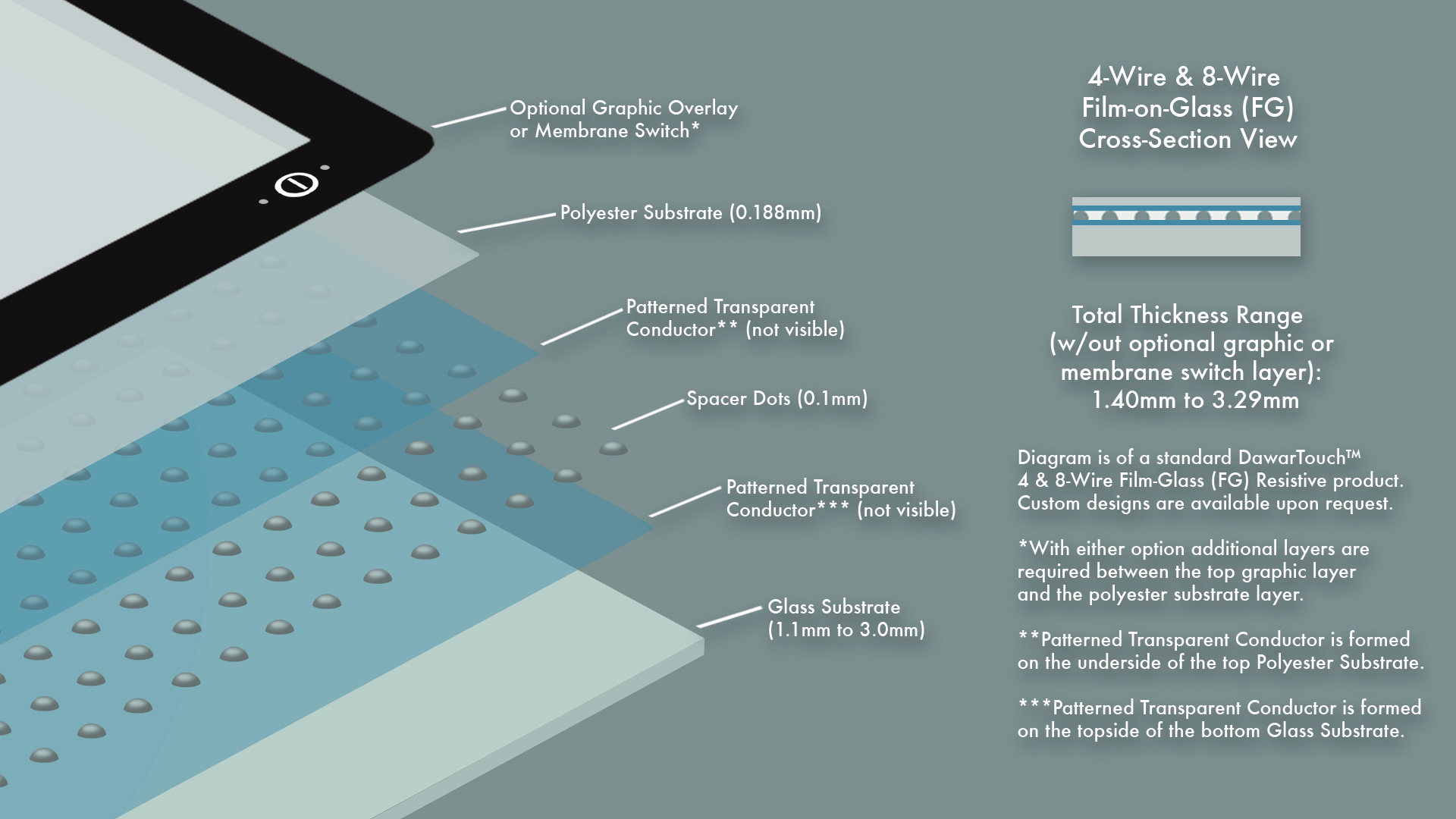

Dawar offers 8-wire touch screens in both FG (Film-on-Glass) and PL (Film-Film-Glass) constructions. We have a full range of standard product up to 24” and can also provide full custom solutions to meet your specific application requirements.
Our 8-wire Resistive touch screens can be bonded to a full sheet of polyester or polycarbonate overlay. This graphic overlay could also be the graphic overlay of a membrane switch layer. This design eliminates the need for clumsy perimeter gaskets or thick bezel cutouts. It provides a washable front surface and extra durability for the touch screen in harsh environments. A full ESD shield of ITO coating or a perimeter conductive ink or foil shield layer can also be added to prevent damage to the membrane switch layer.
|Touch Points Supported||Single Touch|
|Available Constructions||FG: Film-on-Glass
|Sensor Thickness||FG: 1.39mm – 2.09mm
PL: 1.63mm – 6.53mm*
*Overall thickness may vary depending on rear substrate.
|Standard Size Range||7.0"W - 20.1"
Eval Kits are available for several standard sizes. Kits include Resistive touch screen, Dawar Resistive Controller Board and USB cable or Serial cable.
Please contact your local Dawar Representative if you are interested in purchasing an eval kit for evaluation.
|Custom Sizes Available||2.9" to 22.0"W|
|Maximum Voltage:||5V DC|
|Maximum Current:||Top Layer - 35mA, Bottom Layer - 35mA|
|Loop Resistance:||FG Top Layer - 200-500Ω, FG Bottom Layer - 350-850Ω
PL Top Layer - 300-400Ω, PL Bottom Layer - 300-400Ω
|Insulation Impedance:||>10MΩ @ 25VDC|
|Operation Force:||<80 g|
|Surface Hardness:||≥ 3H|
|Light Transmission:||FG - 80% (ASTMD1003, Wave length = 550nm)
PL - 76% (ASTMD1003, Wave length = 550nm)
|Haze:||FG - <10%
PL - <16%
|Clarity:||FG - >90%
PL - >86%
|Environmental & Storage Conditions|
|Operating Temperature & Humidity:||-10˚C to +60˚C, <90% RH non-condensing for the product|
|Storage Temperature:||-20˚C to +70˚C, <90% RH non-condensing for the product|
|Pen Hitting Durability:||>5,000,000|
|Pen Sliding Durability:||>100,000|
Customer satisfaction is our top priority. If you need delivery sooner than our published lead times, just ask. We will do our best to adjust existing schedules, and we can often work overtime to accommodate your needs. Please note that if expedited delivery is available, an expedite fee may apply.
|Quotations||5 to 7 business days|
(Required for custom solutions)
|5 to 7 business days ARO|
|Standard/Custom Product||5 to 8 weeks*|
*Lead times for custom product begin after drawing approval.
*Lead times can vary based on customization requirements.
|Available Constructions||FG, PL, GFG||FG, PL, GFG||FG, GFG|
|Size Range||2.9" - 22"W||1.4" - 22"||4" - 24"W|
|Standard Product Available||Yes||Yes||Yes|
|Custom Sizes Available||Yes||Yes||Yes|
|Field Calibration Required||No||Yes||No|
|Sunlight Readability Available (Polarizers)||No||No||Yes|
|Integral Graphic Overlay or Membrane Switch||Yes||Yes||Yes|
|Surface Hardness||≥ 3H||≥ 3H||FG: ≥ 3H
GFG: ≥ 7H
Custom sizes are available upon request, click on the Request a Quote link above and a Dawar representative will contact you to discuss your requirements.
|Outer Dimension||Active Area||Construction||Touch Screen
|FG8-1-7.0W-00001||7.0"W||168.40mm x 105.50mm||152.40mm x 91.44mm||FG (Film-Glass)|
|FG8-7.0W-00001||7.0"W||174.00mm x 102.00mm||154.50mm x 87.00mm||FG (Film-Glass)|
|PL8-7.0W-00001||7.0"W||168.40mm x 105.50mm||152.40mm x 91.44mm||PL (Film-Film-OCA-Glass)|
|FG8-8.0W-00001||8.0"W||195.50mm x 115.20mm||175.00mm x 99.20mm||FG (Film-Glass)|
|FG8-8.4-00001||8.4"||188.04mm x 145.53mm||170.38mm x 127.78mm||FG (Film-Glass)|
|PL8-8.4-00001||8.4"||188.04mm x 145.53mm||170.38mm x 127.78mm||FG (Film-Glass)|
|FG8-9.0W-00001||9.0"W||215.09mm x 134.00mm||194.59mm x 118.00mm||FG (Film-Glass)|
|FG8-10.4-00001||10.4"||225.97mm x 177.66mm||211.07mm x 158.50mm||FG (Film-Glass)|
|PL8-1-10.4-00001||10.4"||225.97mm x 177.66mm||211.07mm x 158.50mm||PL (Film-Film-OCA-Glass)|
|PL8-2-10.4-00001||10.4"||238.80mm x 188.70mm||212.10mm x 159.30mm||PL (Film-Film-OCA-Glass)|
|RES8-10.4-00001||10.4"||238.80mm x 188.70mm||212.10mm x 159.30mm||FG (Film-Glass)|
|FG8-10.6W-00001||10.6"W||250.27mm x 163.14mm||231.24mm x 140.79mm||FG (Film-Glass)|
|FG8-12.1-00001||12.1"||268.00mm x 204.00mm||246.00mm x 185.00mm||FG (Film-Glass)|
|PL8-12.1-00001||12.1"||268.00mm x 204.00mm||246.00mm x 185.00mm||PL (Film-Film-OCA-Glass)|
|FG8-12.3W-00001||12.3"W||281.60mm x 179.20mm||261.12mm x 163.20mm||FG (Film-Glass)|
|FG8-15.0-00001||15.0"||333.60mm x 257.51mm||304.09mm x 228.09mm||FG (Film-Glass)|
|PL8-15.0-00001||15.0"||333.60mm x 257.51mm||304.09mm x 228.09mm||PL (Film-Film-OCA-Glass)|
|FG8-15.1-00001||15.1"||328.45mm x 255.63mm||306.09mm x 230.09mm||FG (Film-Glass)|
|FG8-15.3W-00001||15.3" W||358.00mm x 226.00mm||334.08mm x 200.45mm||FG (Film-Glass)|
|FG8-17.0-00001||17.0"||365.00mm x 295.08mm||337.90mm x 270.30mm||FG (Film-Glass)|
|FG8-19.0-00001||19.0"||404.60mm x 330.00mm||376.30mm x 301.05mm||FG (Film-Glass)|
|FG8-20.1-00001||20.1"||435.00mm x 333.60mm||407.00mm x 305.00mm||FG (Film-Glass)|
